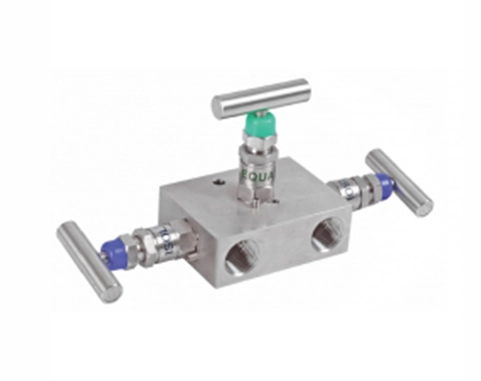

3 Valve Manifold Remote Mounting Type
Efficient Manifold Valve
Technical Specifications
| Parameter | Value |
|---|---|
| Material | SS 304, SS 316, SS 316L, CS |
| Working Pressure | 6000 PSI (400 bar) Max |
| Temperature | 240°C Max |
| Gland Packing | PTFE |
| Standard Process Connection | 1/2" NPT, Flange (For Direct mounting "H" type) |
| Standard Instrument Connection | 1/2" NPT, Flange (For Direct mounting "T" type & "H" type) |
| Drain | 1/4" NPT |
Download & Enquire for More Product Information
Product Features
- Flow control
- Shut-off and isolation
- High-pressure handling
- Durable and corrosion resistant
- Safety and pressure relief
Applications
- Chemical Industry
- Oil & Gas Industry
- Fertilizer Industry
- Pharmaceutical Industry
- Marine & Power Industry
